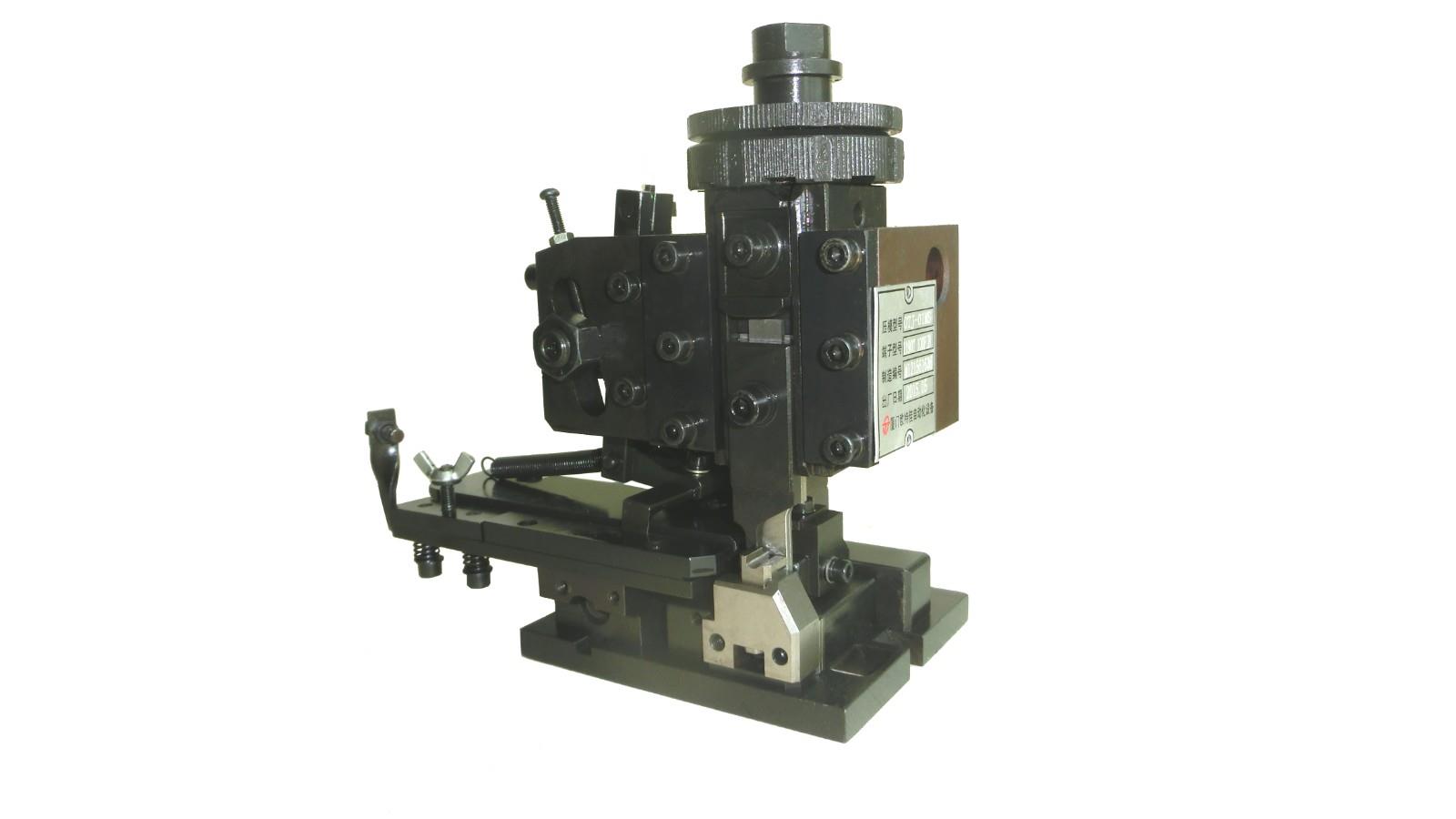

一、 產品型號 OTJ-O1JST日式JST 橫送壓接模具
Type
OTJ-01JST-S
行程Stroke
30mm
料帶形式Feed Type
Side Feed 橫送
閉合高度Shut Height
119.7mm
重量Weight
5kg
適應線徑Wire Size
0.08~6mm2
外形尺寸Dimension(mm)
W180×H155×D110
適應端子料厚Terminal Thickness
1.2mm(max)
送料機構Feeding System
機械式 mechanical
送料步距 Terminal Pitch
30mm(max)
產品特點:
◆ 本產品所有關鍵零件均采用用日本進口鋼材SKD11加硬處理,同時表面鍍高強度防銹硬鉻;氣缸和閥采用國內著名品牌亞德克(AIRTAC),導軌和滑塊采用臺灣上銀(HIWIN),端子刀片采用瑞士壹勝佰(ASSAB)的ASP88專用刀模料,經久耐用。
◆ 壓接高度連續調節系統:采用轉盤調節機構,C.H.調節精度0.05mm,調節范圍0.5mm;I.H.調節精度0.1mm,調節范圍1.0mm調節節奏感強,刻度易識別,從此不用再頻繁調整壓接機閉合高度,理想的壓接質量就是這么容易實現!
◆ 送料機構:前送料(半自動)和后送料(全自動)兩種方案可供選擇。
◆ 快換機構:完美匹配ShinMaywa、JAM、Kodera ……等日系品牌及國內的多數品牌的半自動和全自動壓接機。
◆ 技術文件:提供完整的使用、保養說明書,如有要求,也可提供機器能力研究、斷面分析報告等文件。
◆ 軍工技術發黑表面處理,專用卸料片結構。
◆ 激光打標:每個零件都擁有自己的唯一性標識。
●The adjusting range of crimping is accurate and wide. You can choose from squre and circular.
●Feeding structure is simple and easy to maintain.
●The side feed can become online adjust,The end feed can be lift simplely freely.
●The terminal pitch,jaw and the terminal position can be adjustable,it is very for customer to change the model.;
●Surface plating:Anti-corrosion
●The perfect match JAM、ShinMaywa.、Kodera and Janpanesen brands such as semi-antomatic and fully automatic crimping machine.
